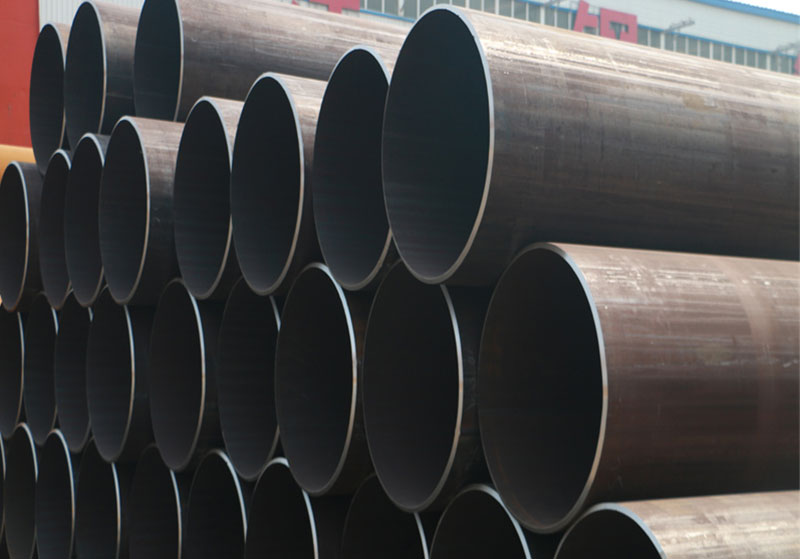

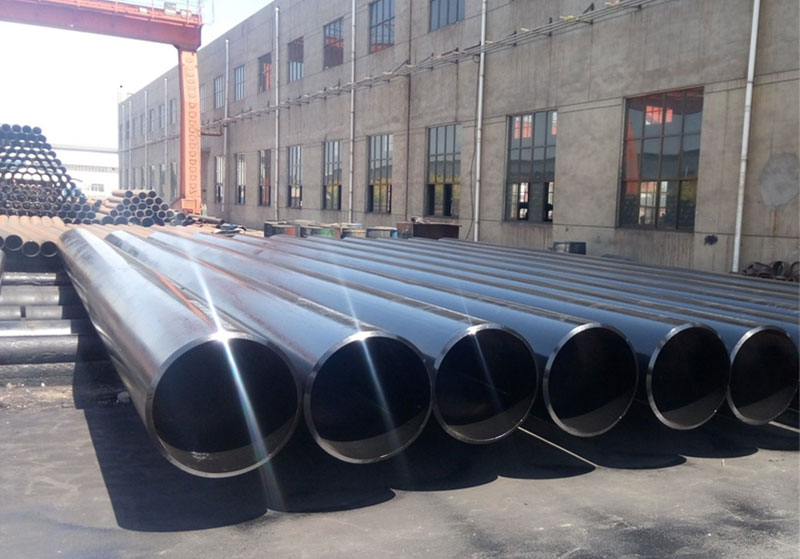

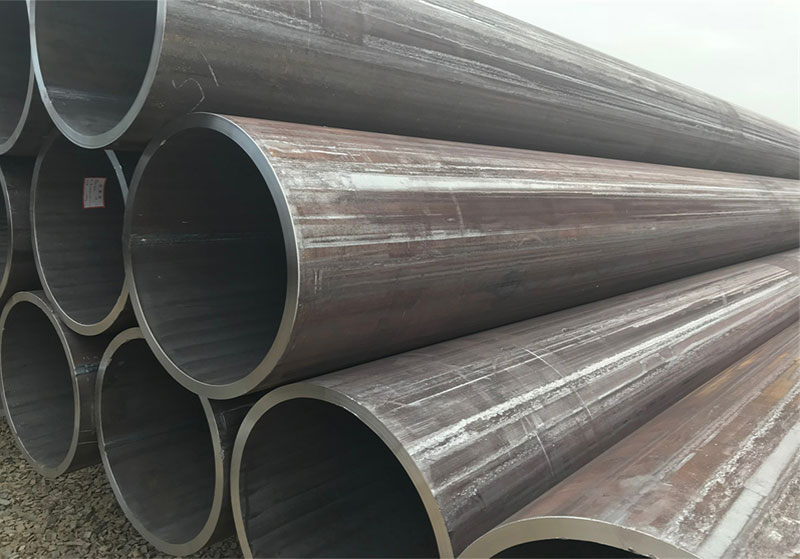

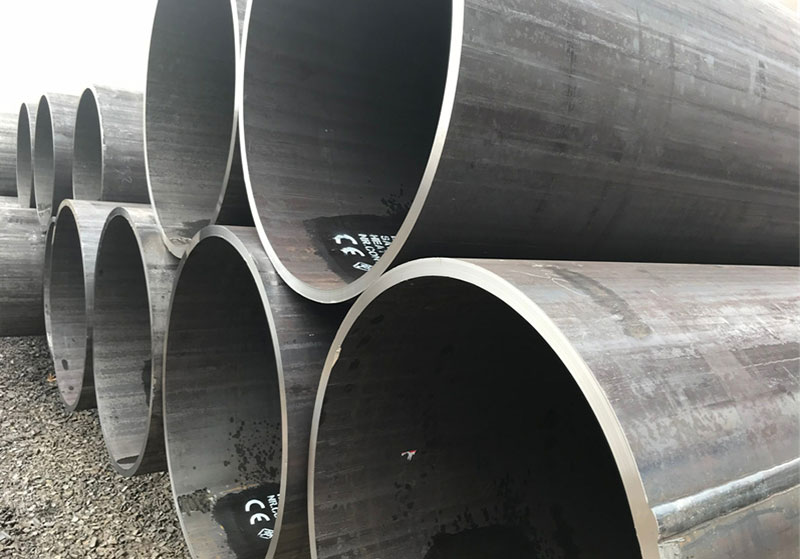

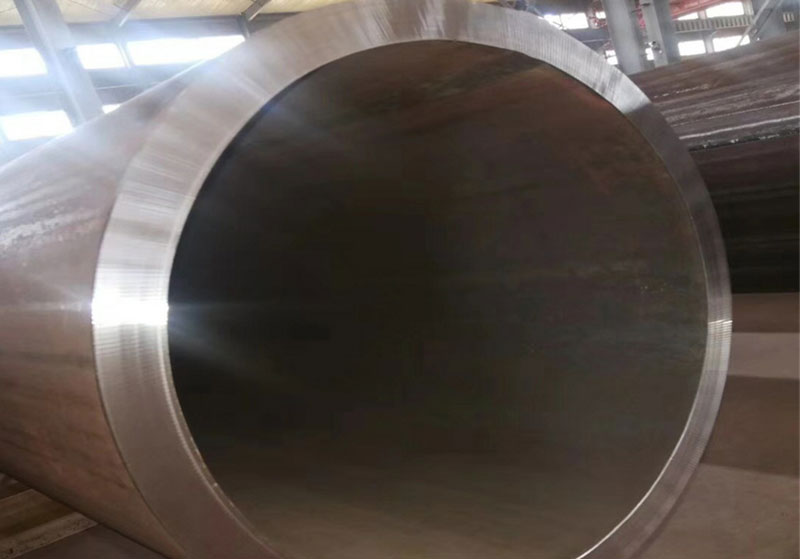

ERW Construction & Structural Steel Pipe
|
Usage: |
Used for construction field, low pressure liquid transportation, in various engineering purposes, fencing, scaffolding etc. |
|
ERW : |
Electric Resistance Welded pipe |
|
HFI: |
High Frequency Induction weld pipe |
|
EFW: |
Electric Fusion Welded Pipe |
|
Standard: |
API 5L, ASTM A500, ASTM A252, ASTM 53, EN10217, DIN 2458, IS 3589, JIS G3452, BS1387 |
|
Certificate: |
ISO 9001, ISO 14001, OHSAS 18001, API 5L PSL1&PSL2, CE (CPR & PED), GOST Certificates |
|
Out Diameter: |
114.3mm – 812.8mm (4″-32″) |
|
Wall Thk: |
3mm-22mm |
|
Length: |
3M-18M |
|
Steel Grade: |
API 5L PSL1 & PSL2: GR B, X42, X46, X56, X60, X65, X70 ASTM A53: GR.A, GR.B EN10210/EN10219: S275, S275JR, S355JRH, S355J2H GB/T3091: Q195, Q215, Q235, Q345, L175, L210, L245, L320, L360- L555 |
|
Surface: |
Fusion bond Epoxy coating, Coal Tar Epoxy, 3PE, Vanish Coating, Bitumen Coating, Black Oil coating as per customer’s requirement |
|
Tests: |
Chemical Component Analysis, Mechanical Properties (Ultimate tensile strength, Yield strength, Elongation), Technical Properties (Flattening Test, Bending Test, Blow Test, Impact Test), Exterior Size Inspection, Hydrostatic Test. |
|
MTC: |
EN 10204/3.1B, EN 10204/3.2 (with Third Party Inspection) |
Size & Wall Thickness:
|
Dimension |
Wall Thickness |
|||||||||||||||||
|
|
mm |
3.00 |
4.78 |
6.02 |
6.35 |
7.11 |
7.92 |
8.74 |
9.53 |
10.31 |
11.13 |
11.91 |
12.70 |
14.27 |
15.88 |
17.48 |
19.05 |
20.62 |
|
inch |
|
0.118 |
0.188 |
0.237 |
0.250 |
0.280 |
0.312 |
0.344 |
0.375 |
0.406 |
0.438 |
0.469 |
0.500 |
0.562 |
0.625 |
0.688 |
0.750 |
0.812 |
|
4 |
114.3 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
5 |
141.3 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
6 |
168.3 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
8 |
219.1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
10 |
273.1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
12 |
323.8 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
14 |
355.6 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
16 |
406.4 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
18 |
457.2 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
20 |
508 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
22 |
558.8 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
24 |
609.6 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
26 |
660.4 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
28 |
711.2 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
32 |
812.8 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
